BLITZ 1500 3G-SDI/HDMI WIRELESS VIDEO TRANSMITTER AND RECEIVER SET

Código de producto: BZ1500
Marca: BLITZ
Producto Disponible

3.688,38
Bookmark and Share
Más Información

Model: BZ1500

  • Uncompressed with zero delay wireless video
  • Best performance within 1,500 ft. range
  • Up to 3,445 ft. line of sight range
  • 3G-SDI and HDMI inputs and outputs
  • 3G-SDI loop out on transmitter
  • Uncompressed 10-Bit, 4:2:2 video
  • Signal cross conversion between HDMI and SDI
  • Transmitter supports L series batteries
  • Receiver supports V-Mount batteries
  • Supports up to 4 receivers connected to 1 transmitter

BZ1500

The Ikan Blitz 1500 is the latest addition to the Blitz family of wireless transmitters. With the BZ1500, we increased the range to 1500 feet and designed the body of the transmitter to have an optional front 1/4-20″ mount adapter. The Blitz features uncompressed, zero delay wireless video in a lightweight and affordable package. With a 1500 foot range, this system is perfect for various types of uses such as with wireless follow focus systems as well as gimbal and Steadicam operators. The Blitz 1500 is perfect anytime you need to be untethered from the camera and require reliable wireless video over long distances.


Zero Delay and 1500 Feet of Range

The Blitz supports zero delay video transmission so it is perfect for situations where timing is critical such as with wireless follow focus systems. It features a 1500 foot range to give you the freedom to move about without having to worry about losing signal.

Uncompressed Video

Many wireless systems compress video, but this negatively affects the video quality and introduces delay. The Blitz 1500 sends uncompressed video and allows for zero delay because the system doesn’t spend time compressing and uncompressing the video. The Blitz supports up to 1080 60p uncompressed video.​​​​​​​





Inputs and Outputs

Whether you are using HDMI or SDI, the Blitz has you covered. It supports both HDMI 1.3 and 3G-SDI so you get uncompressed high definition video up to 1080 60p. The Blitz systems are also capable of cross converting whatever signal you are feeding them, allowing you to switch from SDI to HDMI or HDMI to SDI.




Battery Power

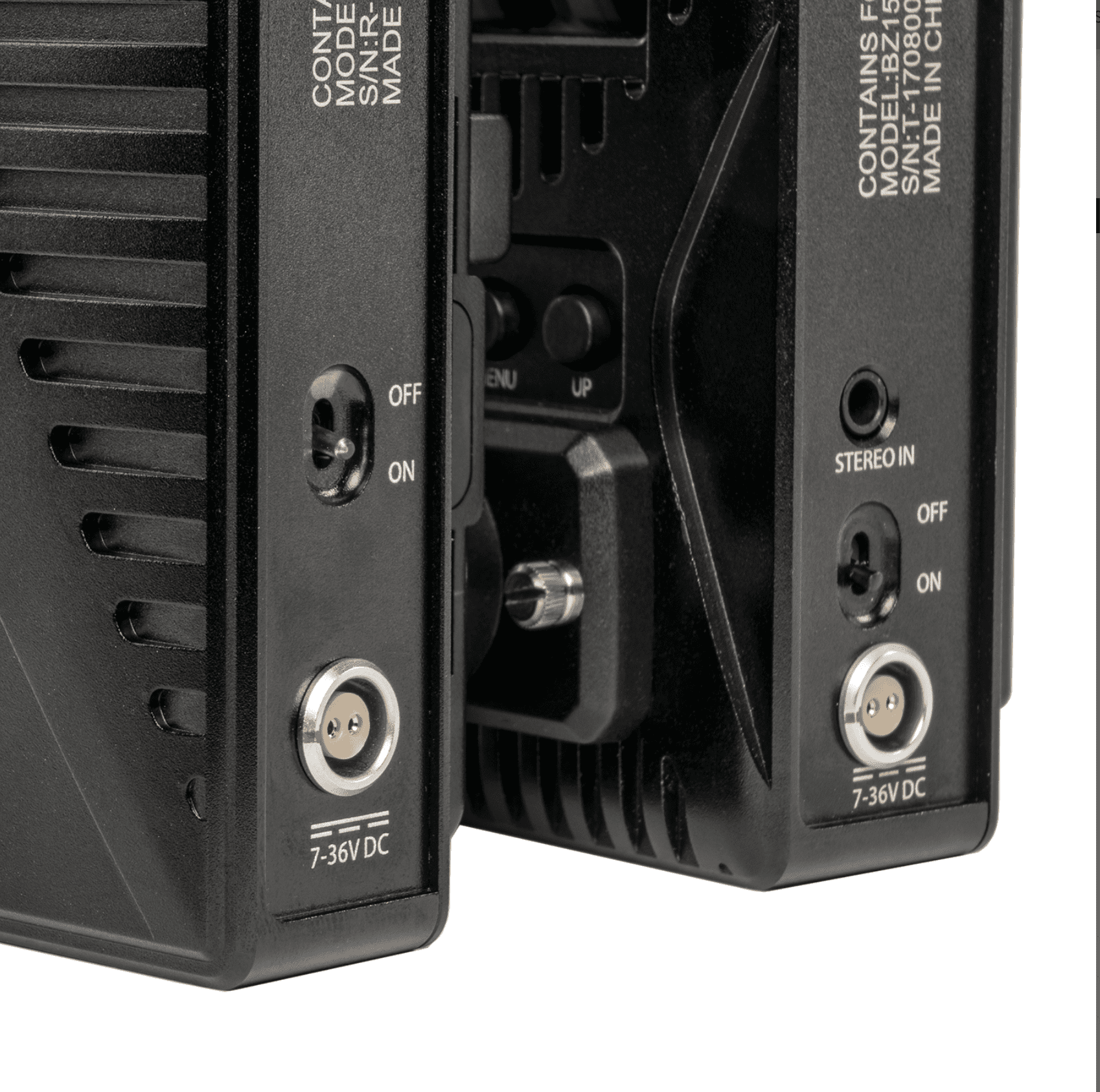

To keep the system light and the cost of use low, we include the necessary battery plates with the Blitz. They come pre-installed and allow you to power the units easily and reliably. The transmitter uses the Sony L Series style batteries and the receiver relies on a V-Mount battery. The units also include 2-pin LEMO compatible power connectors so you can supply power externally with the included P-Tap cables. This allows you to use the same pro batteries that are powering your camera to power the Blitz as well.




Durable, Reliable and Easy to Use

The Blitz 1500 is made out of durable machined aluminum and is extremely easy to set up. You don’t have to mess with complicated menus or setups with its simple-to-use wireless channel selection switch. Just power on the units and they will sync in about 20 seconds or less. The transmitter is small and lightweight so it can be mounted just about anywhere like to your camera’s shoe mount. The receiver features five external antennas to ensure a strong signal as well as an easy to read LCD screen with signal indicators. This way you always have a clear indication of your signal strength.





The Complete Package

The Blitz 1500 ships inside of a durable hard case to make transporting it easy. Inside, you will find an articulating arm and clamp to help you mount the units. One AC adapter and two P-Tap to Lemo compatible cables are also included for more power options. With the Blitz 1500, you’ll get the complete package.

Shipping Weight (lbs): 7
Shipping Dimensions (in): 14.7 x 4.9 x 11.6

What's Included:
2 x P-Tap to Lemo Cables
7 x 5GHz Antennas (SMA Female)
1 x Transmitter
1 x V-Mount Battery Plate (Installed on RX)
1 x Sony L Series Battery Plate (Installed on TX)

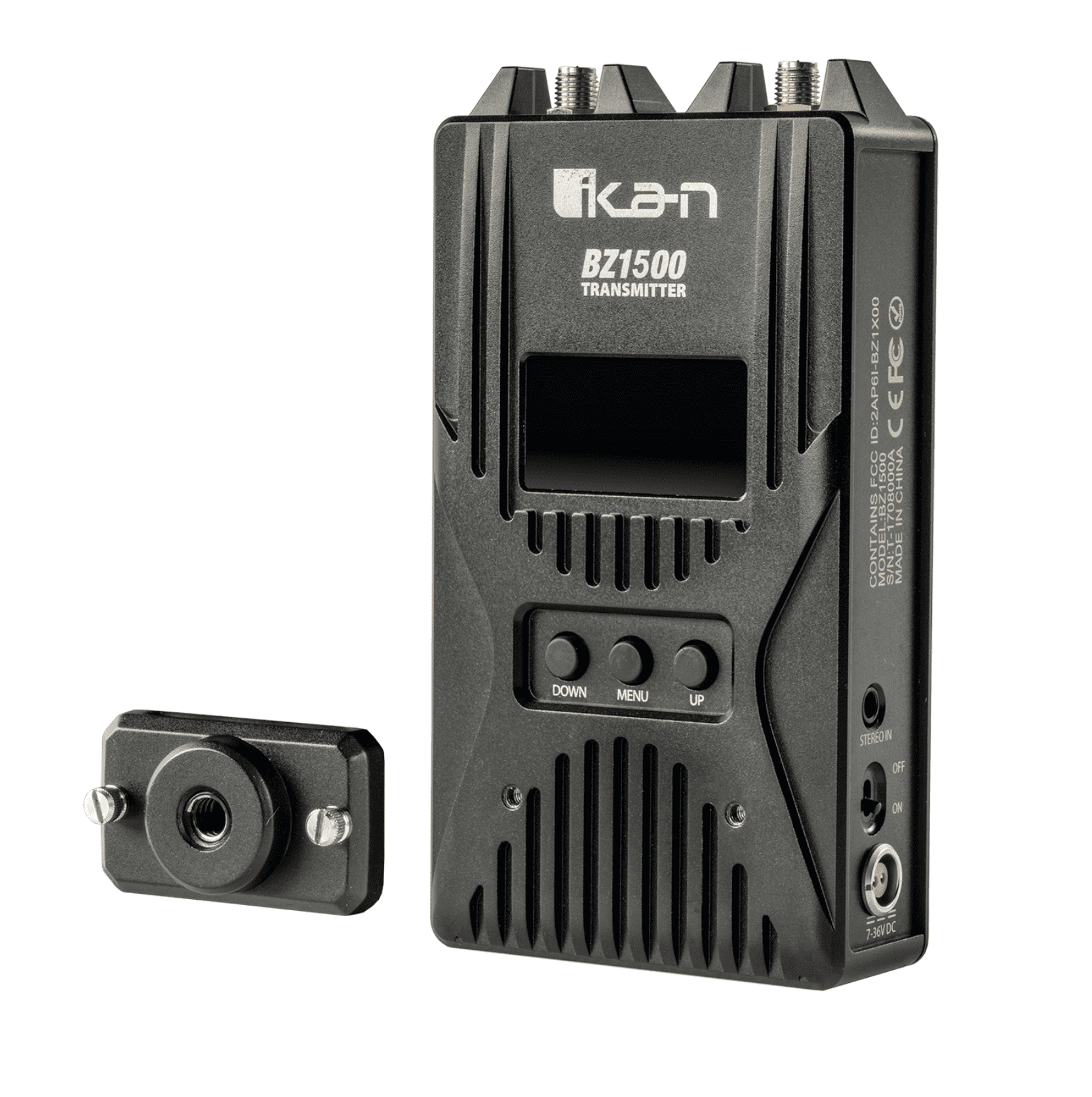

1 x Shoemount Adapter for Transmitter
1 x Receiver
1 x Hard Case
1 x Clamp
1 x Articulating Arm
1 x AC Adapter for Receiver

Audio Output: Receiver: SDI Embedded 4 Channel 24-bit / 48KHz
Band: 40MHz
Compliance: FCC, CE
Dimensions:
Transmitter: 115 x 67 x 23 mm
Receiver: 182 x 127 x 24 mm
Frequency Bands: 5.1 - 5.9 GHz
Input Audio Format: Transmitter: SDI Embedded 4 Channel 24-bit / 48KHz
Input Video Format:
Transmitter:
HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94, 1080p 23.98/24/25/29.97/30/50/59.94/60
SDI: 3G, HD, and SD-SDI (Auto Selected)
SMPTE-259/274/292/296/372/424/425
Input Voltage: 7 - 16.8V DC

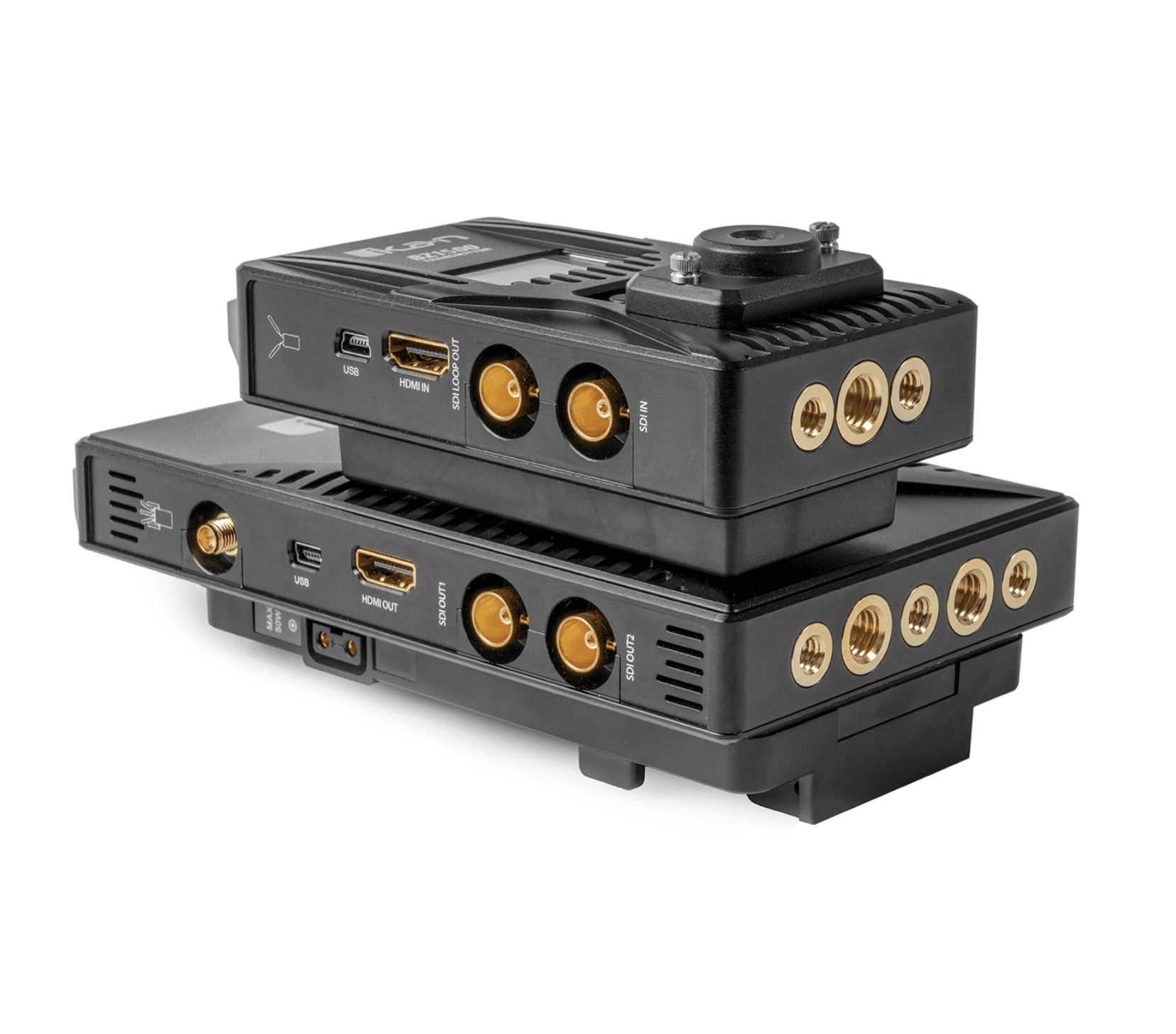

Interface:
Transmitter:
3G-SDI Input (BNC Female)
HDMI Input (Type A Female)
2 x Antenna Ports (RF-2 SMA Male)
DC Input (4 pin LEMO compatible Female)
Receiver:
3G-SDI Input (BNC Female)
HDMI Output (Type A Female)
DC Input (4 pin LEMO compatible Female)
Modulation Mode: OFDM 16QAM
Operating Temperature: 0°C ~ 40°C (Operating)
-20°C ~ 60°C (Storage)
Output Video Format:
Receiver:
HDMI: 525i, 625i, 720p 50/59.94/60, 1080i 50/59.94, 1080p 23.98/24/25/29.97/30/50/59.94/60
SDI: 3G, HD, and SD-SDI (Auto Selected)
SMPTE-259/274/292/296/372/424/425
Power Consumption:
Transmitter: <6.5W
Receiver: <7.5W
Receiver Sensitivity: -75 dBm
Signal Indicators:
Transmitter:
Power: Green / Video: Yellow
Receiver:
Power: Green; Wireless Signal 5 x Green / Video: Yellow
Transmission Power: Max 21 dBm
UPC Code: 847983012152​​​​​​​
