BLITZ 500 3G-SDI/HDMI WIRELESS TRANSMITTER AND RECEIVER SET

Model: BZ500

• Transmits Uncompressed Zero Delay Wireless Video
• 3G-SDI and HDMI Inputs and Outputs
• Up to 1,230 ft. Line of Sight Range
• Best Performance within 500 ft. Range
• Uncompressed 10-Bit, 4:2:2 Video
• HDMI to SDI Cross Conversion
• Supports Sony L Series Batteries
• Supports up to 4 Receivers connected to 1 Transmitter

BZ500

We’ve upgraded the Blitz 400!  The Ikan Blitz 500 is essential in today’s increasingly wireless
production world. The Blitz features uncompressed, zero delay wireless video in a lightweight
and affordable package. With a 500 foot range, this system is perfect for various types of uses
such as with wireless follow focus systems as well as gimbal and Steadicam operators. The Blitz 500
is perfect for anytime you need to be untethered from the camera.

Zero Delay and 500 Feet of Range

The Blitz supports zero delay video transmission, which makes it incredibly useful with wireless f
ollow focus systems where timing is critical. It features a 500 foot range to give you the freedom
to move about without having to worry about losing signal.

Uncompressed Video

Many wireless systems compress video, which affects the quality as well as introduces delay.
The Blitz 500 is able to send uncompressed video up to 1080 60p with zero delay.

Inputs and Outputs

Whether you are using HDMI or SDI, the Blitz has you covered. It supports both HDMI 1.3 and 3G-SDI
so you get uncompressed high definition video up to 1080 60p.

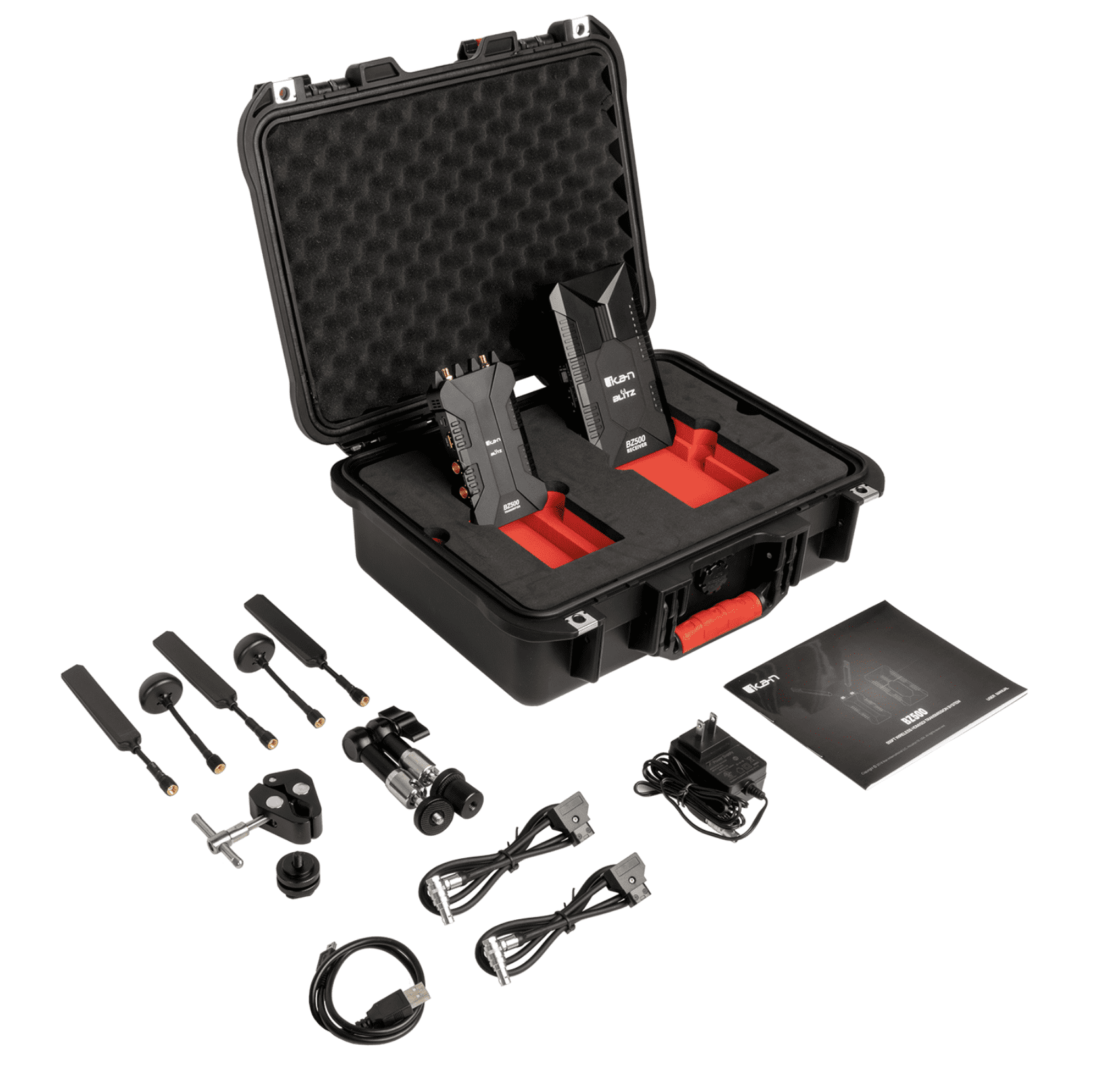

What's Included:
2 x P-Tap to Lemo Cables

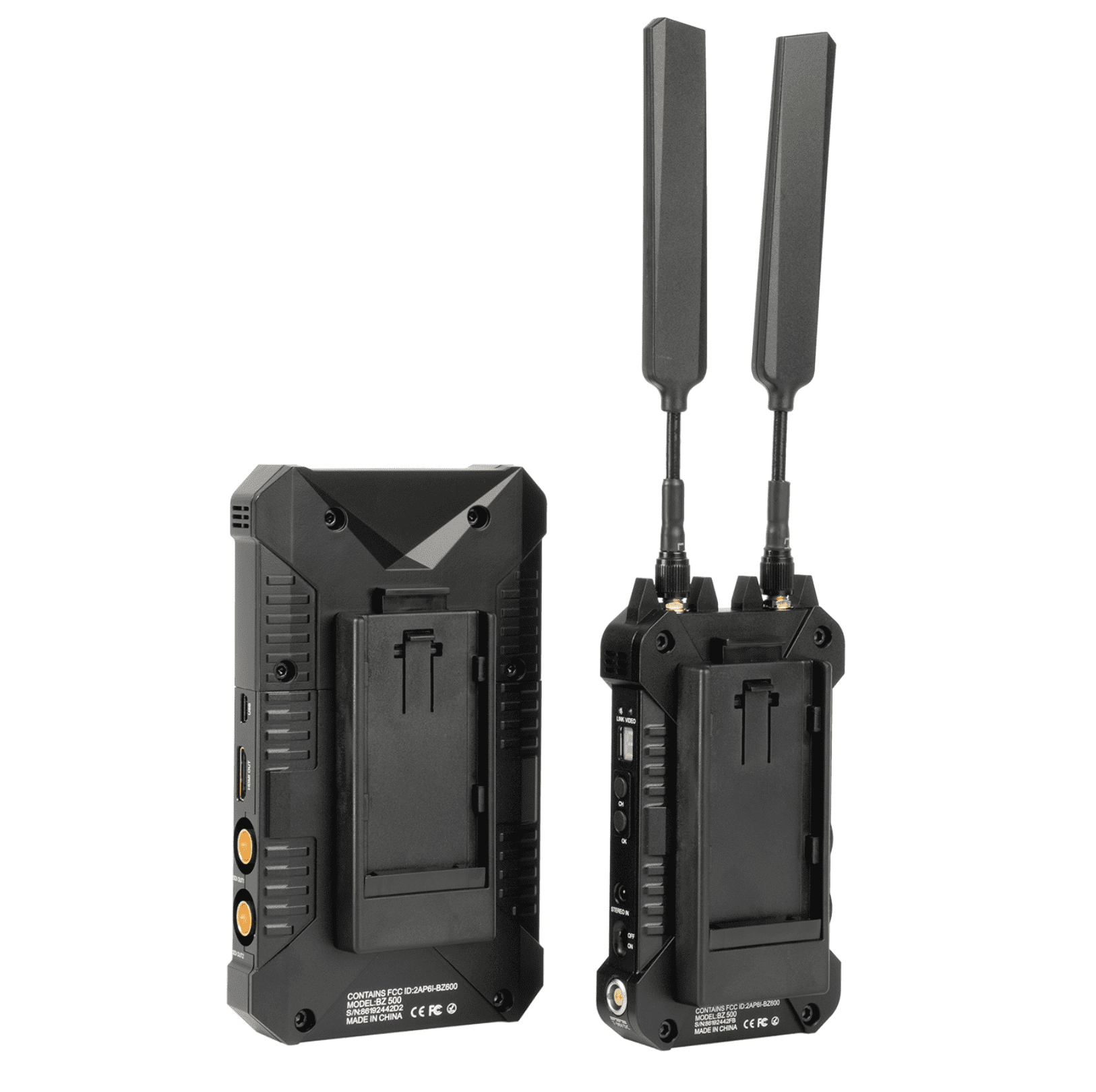

2 x Sony L Series Battery Plates (Installed)
2 x 5GHz Antennas (SMA Female)

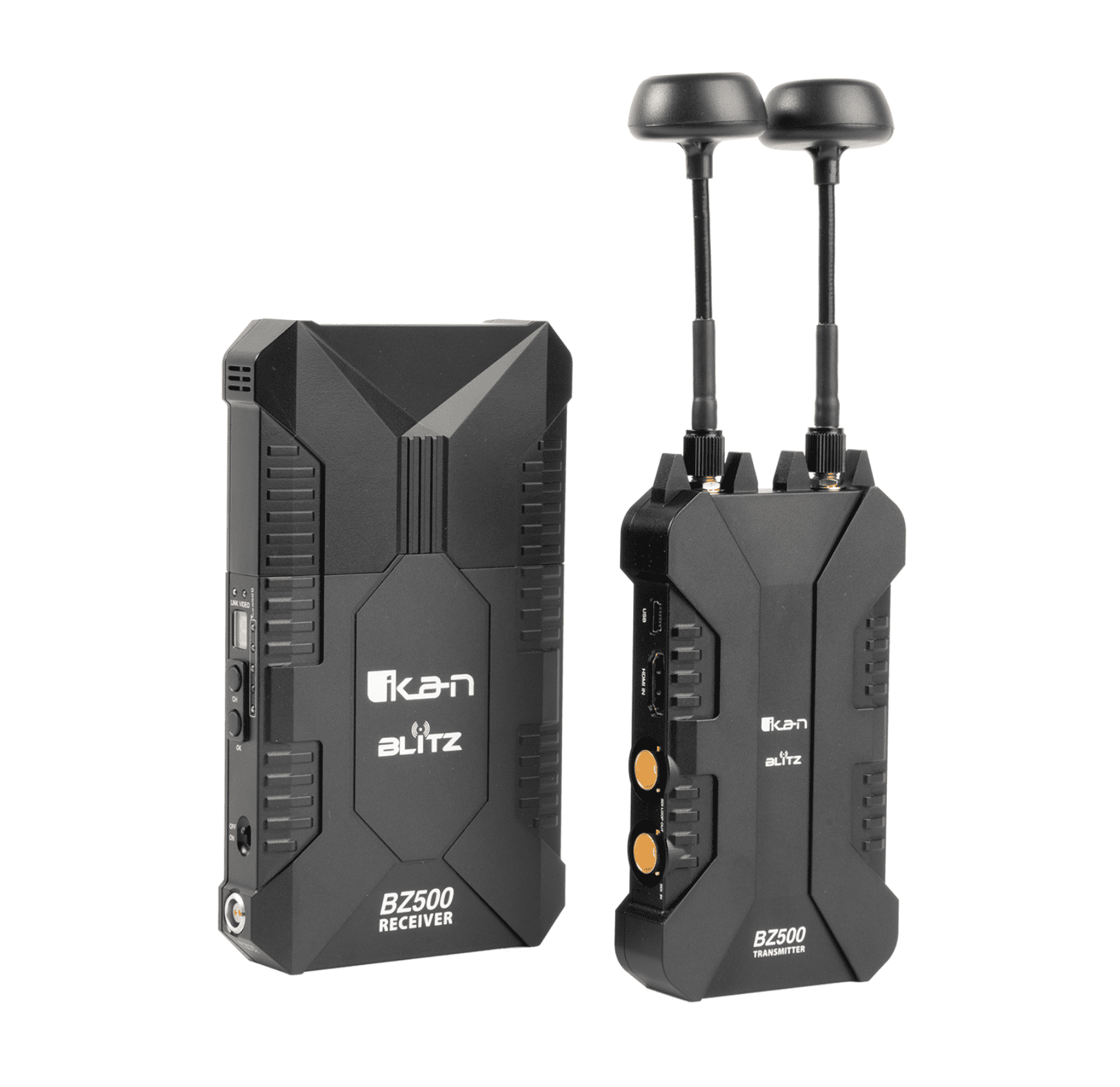

2 x 5GHz Mushroom Antennas (SMA Female)
1 x Transmitter
1 x Shoemount Adapter for Transmitter
1 x Receiver
1 x Power Adapter for Receiver
1 x Hard Case
1 x Clamp
1 x Articulating Arm

Quick Start Guide: BZ500 Downloadable PDF

Audio Output: SDI Embedded 4 Channel 24-bit / 48KHz
Band: 40MHz
Compliance: FCC, CE
Fixture Power Consumption: < 6.5W
Frequency Bands: 5.1 - 5.9 GHz
Input Audio Format: SDI Embedded 4 Channel 24-bit / 48KHz
Input Video Format: HDMI: 525i, 625i, 720p 50/59.94/60 1080i 50/59.94 1080p 23.98/24/25/29.97/30/50/59.94/60 SDI: 3G, HD, and SD-SDI (Auto Selected) SMPTE-259/274/292/296/372/424/425
Input Voltage: 7 - 36V DC
Interface: Transmitter: 3G-SDI Input (BNC Female) HDMI Input (Type A Female) 2 x Antenna Ports (RF-2 SMA Male) DC Input (2 pin LEMO Female) Receiver: 3G-SDI Input (BNC Female) HDMI Output (Type A Female) DC Input (2 pin LEMO Female)
Modulation Mode: OFDM 16QAM
Operating Temperature: 0°C ~ 40°C (Operating) -20°C ~ 60°C (Storage)
Output Video Format: HDMI: 525i, 625i, 720p 50/59.94/60 1080i 50/59.94 1080p 23.98/24/25/29.97/30/50/59.94/60 SDI: 3G, HD, and SD-SDI (Auto Selected) SMPTE-259/274/292/296/372/424/425
Receiver Sensitivity: -75 dBm
Signal Indicators: Transmitter: Power: Green / Video: Yellow Receiver: Power Green; Wireless Signal 5 x Green / Video: Yellow
