Blueshape SAI Sistema de cambio de baterias en caliente MVQUICK

Specifications:

• Nominal Voltage: 14.8V
• Voltage range: 10.8V ~ 16.8V
• Nominal Capacity: 1.5Ah, 21Wh
• Max. discharge current: 10A
• About up to 10~15 minutes runtime when used standalone as an UPS backup battery
• Installable on any V-Lock enabled device
• Self charging through the installed battery, can be charged also on any V-Lock chargers
• Allow data communication from battery to camera
• Size: 142 x 83 x 50mm (5.59" x 3.27" x 1.97")
• Weight: 0.49Kg (1.08lbs)

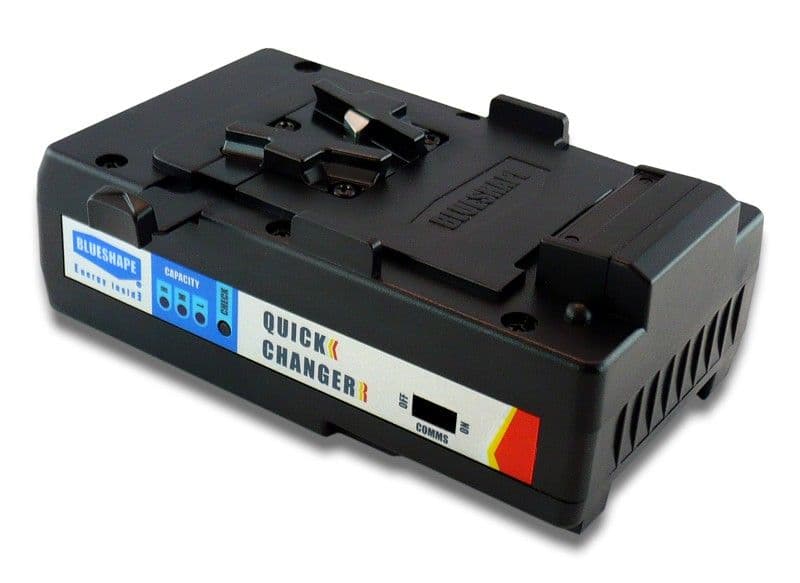

MVQUICK is a hot swap system to be installed as a battery interface between the camera (or any other V-lock compatible device) and the battery pack. The main purpose is to allow camera battery replacement without any power interruption through an automatic detection of the battery removal.
Additionally, MVQUICK provides an alternative power source of about 21Wh to be used as UPS in case of a sudden power failure or extended power requirements.

Discover the principles of operation



High-load cell technology permits discharging of up to 10A when used as a stand alone power source.

Automatically recovers a part of the energy spent during the hot swap period upon reinstatement of a fresh battery, and due to this features allows several hot swap operationswithoutn needing any further charge.
If used as UPS device, it can be charged normally on standard Vlock chargers.

MVQUICK is designed to work perfectly with cameras using BLUESHAPE battery communication protocol.

	LED indicators showing state of charge of internal battery
	Push button for capacity check
	Installation interface for external V-Lock battery
	Output connector (power outlet, to camera)
	Data communication selector to enable or disable battery communication to camera
	D-Tap auxiliary connector
	V-Lock interface for MVQUICK installation
