SLIDE KAMERA SLIDER TRAVIGO PRO 1000mm Longitud de carril , opción motorizada disponible

SLIDE KAMERA SLIDER TRAVIGO PRO 1000mm Longitud de carril , opción motorizada disponible
SLIDE KAMERA SLIDER TRAVIGO PRO 1000mm Longitud de carril , opción motorizada disponible SLIDE KAMERA SLIDER TRAVIGO PRO 1000mm Longitud de carril , opción motorizada disponible SLIDE KAMERA SLIDER TRAVIGO PRO 1000mm Longitud de carril , opción motorizada disponible SLIDE KAMERA SLIDER TRAVIGO PRO 1000mm Longitud de carril , opción motorizada disponible
Código de producto: SP-1000 PRO
Marca: SLIDEKAMERA
Producto Disponible

499,95
529,95
Motion Controller
Bookmark and Share
Más Información

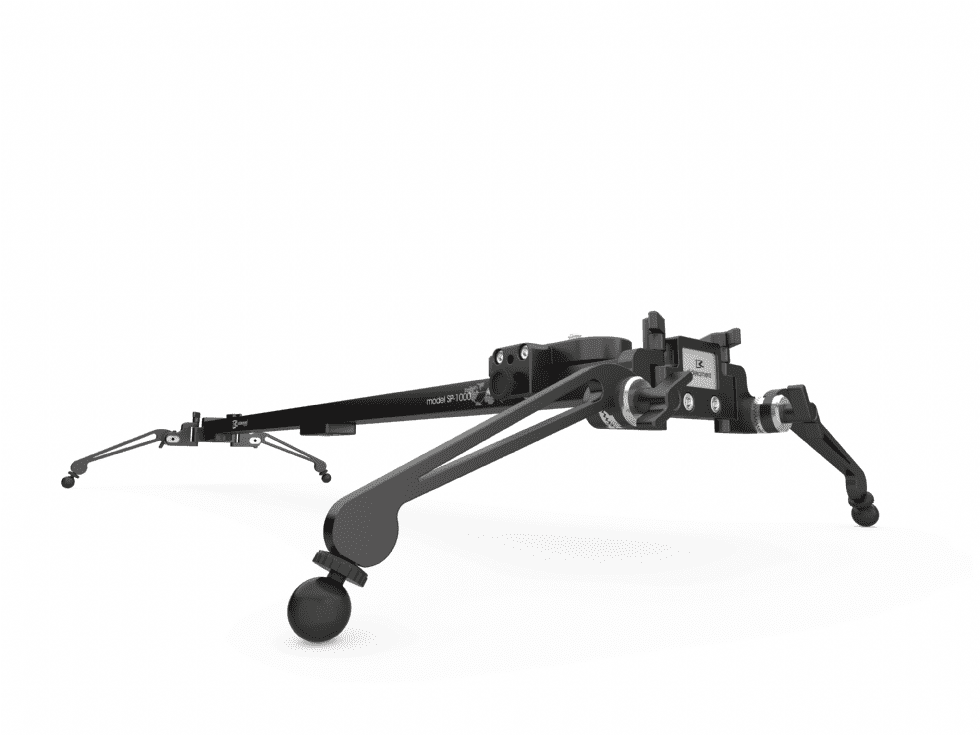

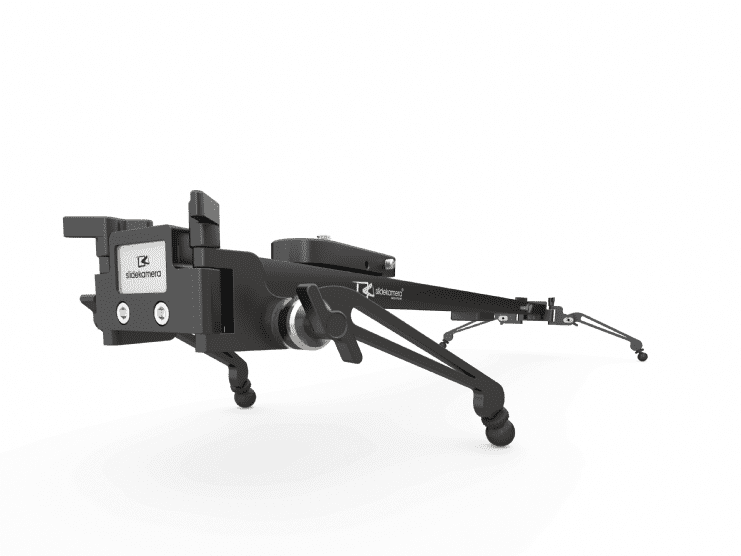

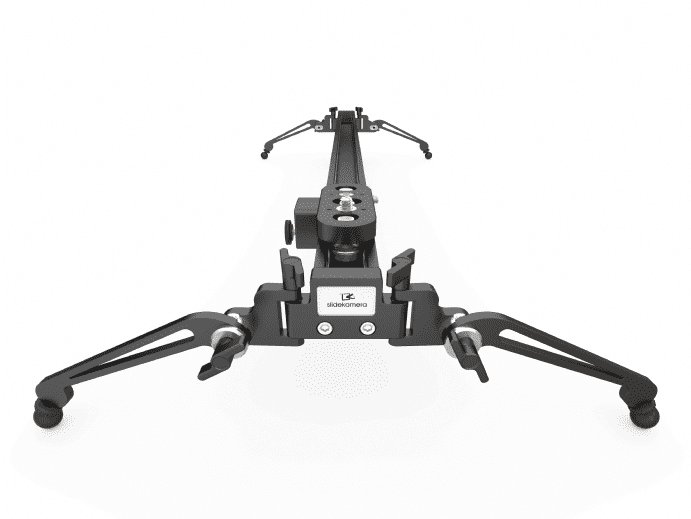

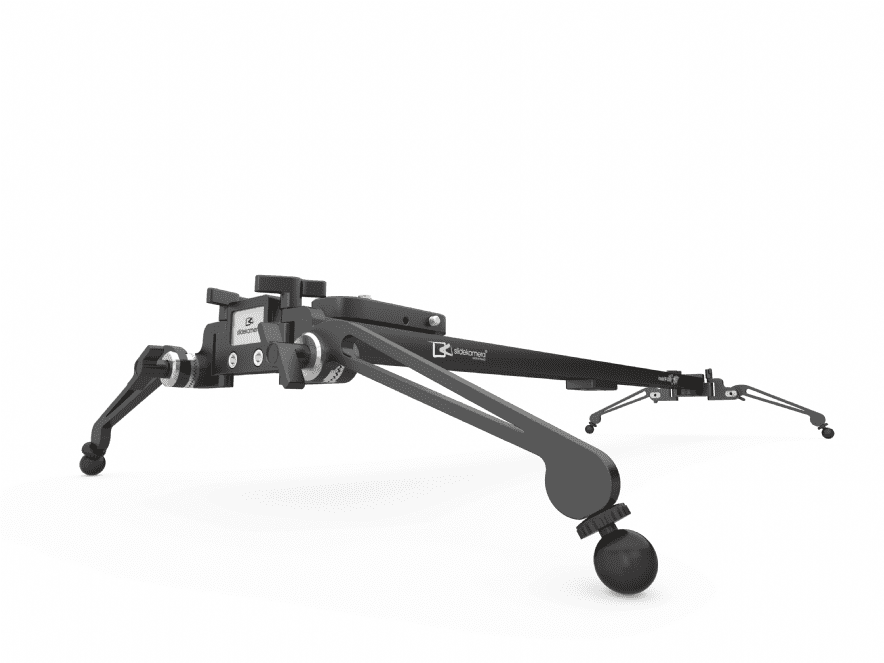

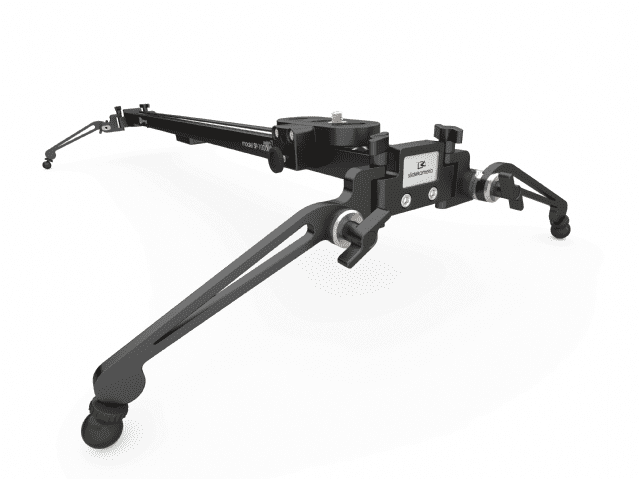

Slide Kamera SP-1000 PRO is a professional device perfect for smooth shots during the camera movement. Suitable for camcorders and cameras of a total weight up to 4kg. Deliberately deisgned cart moves on a rail carrying the camera in front of the object that is being filmed. The cart is made of three stainless steel bearinged rollers (INOX). Moreover, rollers are placed inside the cart which makes them more resistant to damage. The cart has four M4 threaded holes and two 1/4'' holes for mounting accessories in various combinations.

Aluminum construction guarantees reliability and lightness of the rail, inside which there are two stainless steel (INOX) bars. The rail has a central mounting port with 3/8'' and 1/4'' holes and  two 3/8'' mounting ports (one on each edge of the rail) - it allows to mount the device on two tripods.

Number of mounting holes that allow to mount various accessories in many combinations makes the device universally and provides the user with great configuration possibilities.

Aluminum AF-3-S PRO Feet, compatible with S-980, S-1500, SP-600 and SP-1500 models, provides device stability on rough base.

Set includes:

  • 1000mm rail
  • AF-3-S PRO Feet
  • cart with 3/8'' threaded hole and a level
  • AF-11 SL reduction 1/4"-3/8" mandrel
  • AF-12 SL reduction 3/8" mandrel
  • Standstill brake
  • Hex key
  • User manual

Specification:

Application:

smooth shots during the camera movement

Length of the rail:

1000mm

Weight of the rail:

3,4kg

Width of the rail:

50mm

Maximum width of AF-3-S PRO Feet:

520mm

Max load:

4kg

Rail mounting holes:

central mounting port with 3/8'' and 1/4'' holes and one 3/8" hole on each edge of the rail

Cart mounting holes:

3/8" threaded hole, four M4 mounting holes, two 1/4'' holes

Bubble level:

1 bubble level on the cart

Material:

aluminum rail with two stainless steel (INOX) bars inside

Color:

black



OPCIONES MOTORES


OPCION X MOTOR


X MOTOR 40
 drive for TRAVIGO SLIDER

(We install the same drive in X SLIDER)

FLUID AND REPETATIVE MOTION

The right engine, with a precise mechanical gearbox result in a very versatile device. It allows not only
a very fluid camera
live action motion, but also works great for timelapse or stop-motion photography. Every movement can be programmed
and repeated many times with the same precision.

To avoid camera shake during shutter release, there is a shutter release cable in the set, compatible
with the camera used for stop-motion or timelapse photography.


X MOTOR 20
X MOTOR 20

VERTICAL POSITION

The device works in a vertical position. It can handle cameras up to 4kg.

To work vertically or diagonally, the set has to be extended by additional accesories, enabeling assambly
in the desired position.

We recommend the following Slidekamera products:

POWER SUPLY

Besides of the included charger the X MOTOR 40 drive works with any DC 12 V power suply, such as:

POWER SUPLY FAILURE

Camera safety is very important. The drive stops the cart in case of power failure, that protects the
equipement from falling down.

BP-U adapter with magnetic holder

BP-U adapter with magnetic adapter can be used to mount:

  • BP-U battery (recommended battery BP-U60, 56Wh or more)
  • SLIDELINK Wi-Fi Adapter and other accessories.
Estimated BP-U60 battery life:
  • for horizontal track, from 4h to 20h
  • for vertical track, from 2h to 20h

NOTE: BP-U battery not included in the set.

More information
X MOTOR 20

AF-7 Power pack

High quality maintenance-free 12V 7Ah battery with a dedicated charger and PSK-7 cover. PSK-7 cover
with external power socket not only facilitates using the battery but also allows to carry the equipment
comfortably. There is enough place for 12V 7Ah battery with a charger inside and an extra compartment
for additional cables.

More information
AF-7

CONTROLLER

The AION IQ Controller has many extended programs. VIDEO for live action, ANIMATION for stop-motion photography and
the very popular TIMELAPSE.

The 1/4” socket in the base of the controller enables it to be mounted to the cart with a 8” or 11” VARIO ARM - Classic.


AION IQ

AION IQ Controller programs:

VIDEO:
  • Free Ride Mode - allows the user to control the speed of the slider using joystick and adjusting knobs.
  • Recording Mode - records movements of the slider in order to play it back later in Playback mode.
  • Playback Mode - plays back movements of the slider saved in Recording mode.
  • Video Loop Mode - during VideoLoop mode slider automatically turns back and starts moving in the opposite direction once it reaches the end of movement range.
ANIMATION: moves the camera on a programmed path during series of shots (drive can trigger the shutter by the cable connected to the camera).
TIMELAPSE: designed for interval shots synchronized with a very slow movement of the cart.


The Slideye™ PRO APP



Controlling Slidekamera gear has never been more comfortable. The Slideye™ PRO free app will help you
manage our devices with easiness and precision.

The X MOTOR 40 drive should be equiped with an additional SLIDELINK Wi-Fi Adapter,  that enables wireless conection to the app on a Android tablets.



The apps are constantly improved and frequently updated.

Basic modes of Slideye™PRO:

  • Live Control
  • Trajectory with the addition of keyframes
  • Looping with Precise Parallax
  • Advanced Timelapse
  • Multi-axis Curves mode

More information


SLIDELINK Wi-Fi Adapter

The SLIDELINK Wi-Fi Adapter enables the remote control of the devices of the Slidekamera system via the Slideye™ PRO
application (available for Android tablets) and Slidekamera drivers, equipped with Wi-Fi connection.

A single SLIDELINK Wi-Fi Adater is sufficient for controlling the whole system, regardless of the number of
devices. In order to increase the freedom of movement of the system it is possible to use a bigger number
of adapters.

More information
Adapter SLIDE LINK

SET INCLUDES:

  • X MOTOR 40 for TRAVIGO (drive with worm gear and housing with I/O ports)
  • Set of heads
  • AION IQ Controller
  • Cable connecting the motor with the controller
  • Shutter release cable to connect the motor with the photo camera
  • Shutter release cables to choose: WS-1, WS-2, WS-3, WS-4, WS-5, WS-6, WS-7, WS-8, WS-9
  • Power transmission belt
  • 12V power supply


X MOTOR 40 for TRAVIGO - SET SPECIFICATION

A set of drive heads consists of two drive heads, one head per side of the slider. The heads are equipped
with power transmission elements and a toothed belt connecting the slider cart and the driving motor.
The drive heads do not shorten the working range of the cart.

First drive head is equipped with 1/4 " and 3/8" holes with hardened inserts for attaching accessories.

X MOTOR 40 driving motor consists of a worm gear and a housing equipped with a number of sockets:

  • RJ 45 socket (2 pcs) for communication between the controller and the motor, also for connecting SLIDELINK Wi-Fi Adapter with other drives
  • DC power socket (2 pcs) to connect power source
  • 2,5mm Trigger jack to connect the shutter release cable

Second drive head is used for mounting X MOTOR 40 (motor + drive unit) using a hinge clamp.

Single knob connection of the belt and the cart allows to easily disconnect the drive and move the cart
manually.

SPECIFICATION

Supply voltage: 10..18V DC
Slider cart payload: Maximum payload for horizontal track: 4,5kg
Maximum payload for vertical track: 4kg
Power consumption:

Continuous horizontal track: max 1A @ 12V
Continuous vertical track with max. payload: 2,5A @ 12V

Operating time with battery 12V 7Ah
(room temperature, horizontal track):

over 7h

Cart speed:

maximum 50mm/s - in VIDEO program
minimum 50mm/999h - in TIMELAPSE program

Operating temperature range: -10°C..70°C

Shutter release cable (one to choose):

WS-1, WS-2, WS-3, WS-4, WS-5, WS-6, WS-7, WS-8, WS-9

(shutter release cables used in ANIMATION, TIMELAPSE programs)
How to fit the shutter release cable

Dimensions: Width:
Length:
Height:
Weight: 1kg



SLIDELINK Wi-Fi Adapter

The SLIDELINK Wi-Fi Adapter enables the remote control of the devices of the Slidekamera™ system via the Slideye™PRO Application (available mainly for Android tablets) and Slidekamera™ drivers, equipped with Wi-Fi connection.

A single SLIDELINK Wi-Fi is sufficient for controlling the whole system, regardless of the number of devices. In order to increase the freedom of movement of the system it is possible to use a bigger number of adapters.

Wireless communication for Slideye PRO Application for Android tablets​​​​​​​
