Wooden Camera - C-Box (Hd-SDI, D-Tap)

Wooden Camera - C-Box (Hd-SDI, D-Tap)
Wooden Camera - C-Box (Hd-SDI, D-Tap) Wooden Camera - C-Box (Hd-SDI, D-Tap) Wooden Camera - C-Box (Hd-SDI, D-Tap) Wooden Camera - C-Box (Hd-SDI, D-Tap)

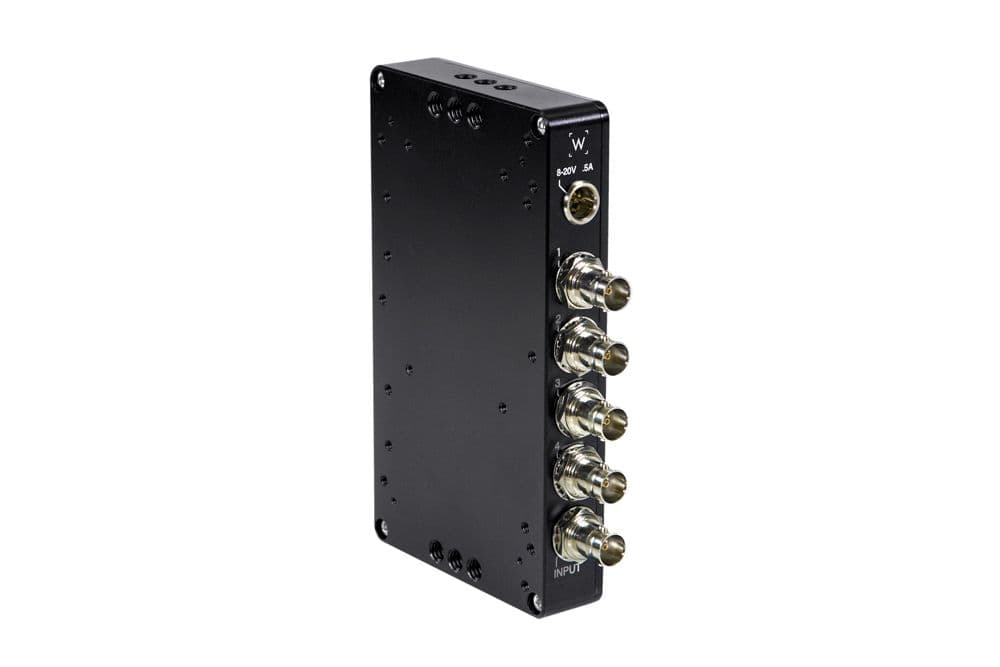

C-Box (HD-SDI, D-Tap) is a 1 input, 4 output, HD-SDI distribution amplifier that draws power from the D-Tap of a battery or battery plate
Código de producto: 171200
Producto Disponible

747,44
Bookmark and Share
Más Información
C-Box (HD-SDI, D-Tap) is a 1 input, 4 output, HD-SDI distribution amplifier that draws power from the D-Tap of a battery or battery plate. Each output is independently reclocked and carries the same signal strength as the original. LED indicators are located on the operator's side to show status of power and signal.

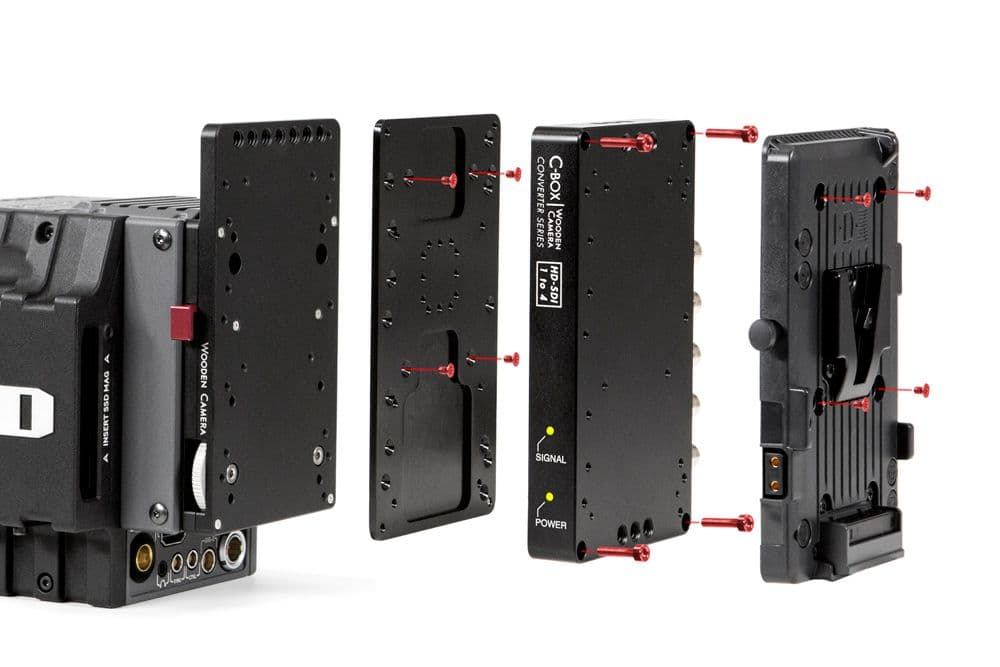

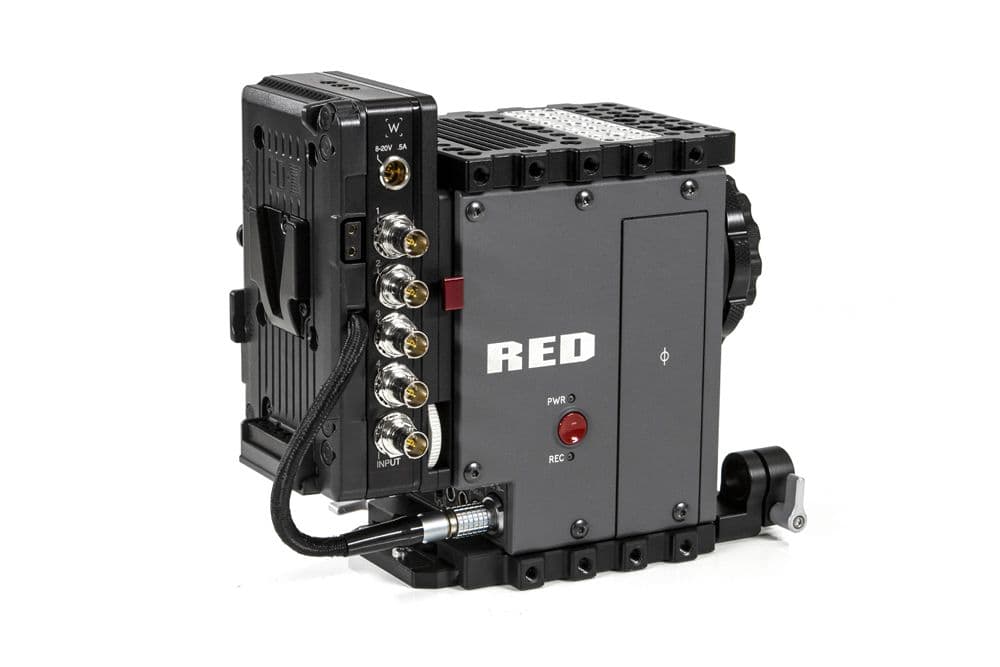

This version attaches between any V-Mount or QRC-style Gold Mount and wherever the plate was attached previously. For example, the C-Box (HD-SDI, D-Tap) can fit between theWC V-Mount (Epic/Scarlet) and the Quick Back v2. Another example would be attaching it between the WC Gold Mount (BMC) and the Battery Slide.

Overview:

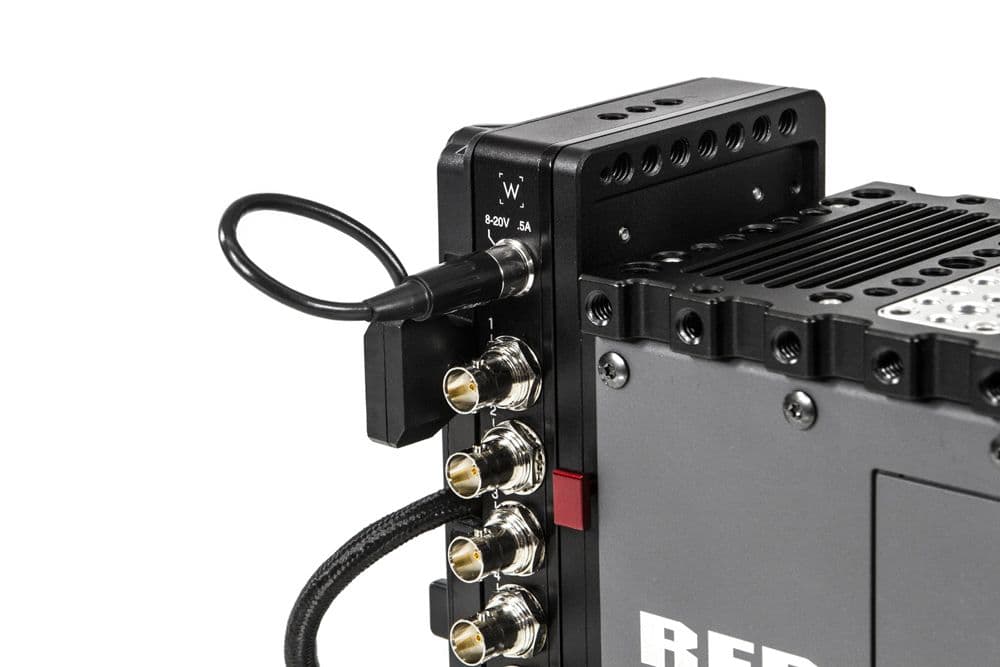

- Power Input 4 pin mini-XLR, 8-20 VDC .5A
- Included 4" D-Tap to 4 pin mini-XLR cable
- LED indicator for Signal and Power on operator side
- Bolts to standard V-Mount, QRC-style Gold Mount, and RED/Blueshape mounting patterns
- Standard V-Mount, QRC-style Gold Mount, and RED/Blueshape plates can be bolted to the box itself
- 1/4-20 holes on top and bottom allow for attachment of rod clamps, cheeseplates, and other accessories
- Re-clocks standard SD, HD and 3G SDI data rates
- Auto bypasses non-standard SDI rates from 20Mbit/s to 3Gbit/s
- Passes SDI embedded audio and ancillary data
- Operating Temperature 0 to +40 C
- Operating Humidity 0 to 90% Non-Condensing

Signal Information
- Data Types: SMPTE 259/292/424
- Data Rates: 19 Mbit/s through 3.0 Gbit/s
- Re-clocking Data Rates: 270 Mbit/s, 1.485 Gbit/s, 2.97 Gbit/s
- Input/Output Return Loss: > 15dB @ HD, > 12dB @ 3G
- Input Level: 800 mV P-P +/- 20%
- Input Impedance: 75 Ohms +/- 1%
- Output Level: 800 mV P-P +/- 5%
- Output Impedance: 75 Ohms +/- 1%
- Output Jitter: < 0.2 UI

Other Notes
- A/C Adapter included
- 2 positions available for mounting QRC-style power plates: high and low
- Hole pattern available for mounting common accessory V mount
- 4 pin mini-XLR power connector same as TV Logic/Alphatron
